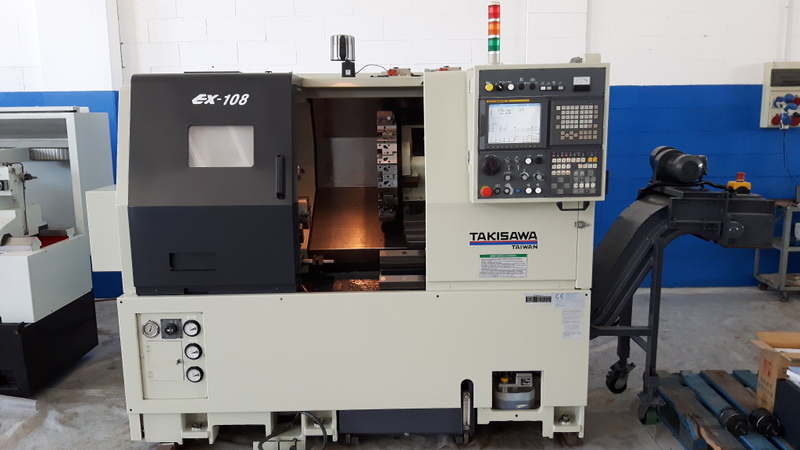

TORNIO CNC TAKISAWA EX-108 USATO
| TORNIO TAKISAWA | |
| MODELLO | EX 108 |
| MATRICOLA | CE 10E 81637 |
| ANNO | 2004 |

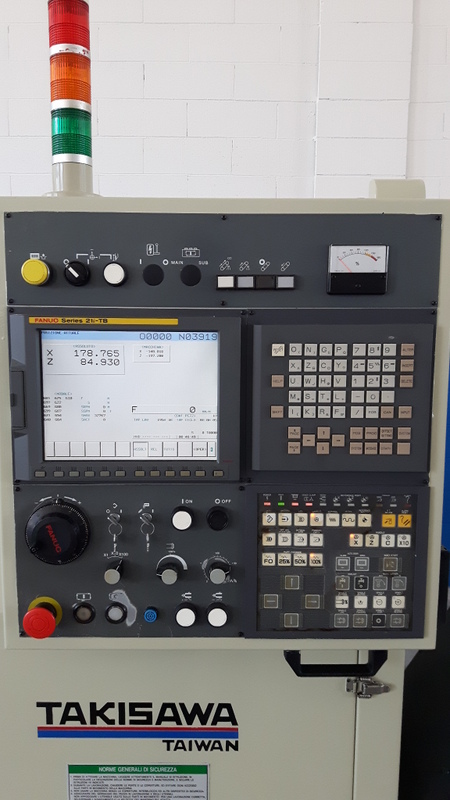

| CNC | FANUC |
| MAX SWING | 480 MM |
| STANDARD TURNING DIAMETER | 216 MM |
| MAX TURNING DIAMETER | 320 MM |
| MAX TURNING LENGHT | 520 MM |
| TRAVEL | |
| X TRAVEL | 180 MM |
| Z AXIS TRAVEL | 530 MM |
| SPINDLE SPEED RANGE | 4000 MM |
| NR OF SPLINDE SPEED RANGE | 1 |
| TYPE OF SPLINDLE NOSE | JIS A2-6 |
| SPLINDLE TAPER HOLE TYPE | 75 MM 1 20 TAPER |
| SPLINDLE BEARING INNER DIAM | 100 MM |
| THROUGH SPLINDE HOLE DIAM | 63 MM |

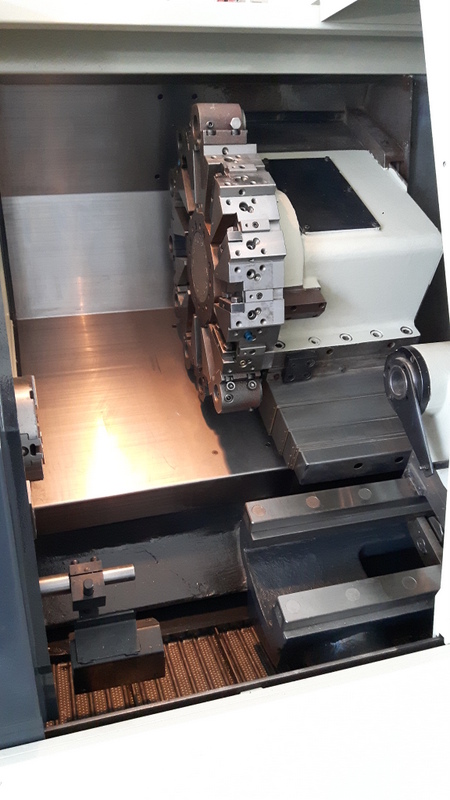

| TYPE OF TOOL SLIDE | 12 STA TURRET |
| NR OF TOOLS ON TOOL SLIDE | 12 |
| SQUARE SHANK HEIGHT OF SINGLE POINT TOOLS | 25 MM |
| SHANK DIAM OF BORING BARS | 40 MM |
| RAPID TRAVERSE RATE | X 2000 MM MIN AUTOMATIC |
MACCHINA RIPRISTINATA OTTIMO AFFARE.
