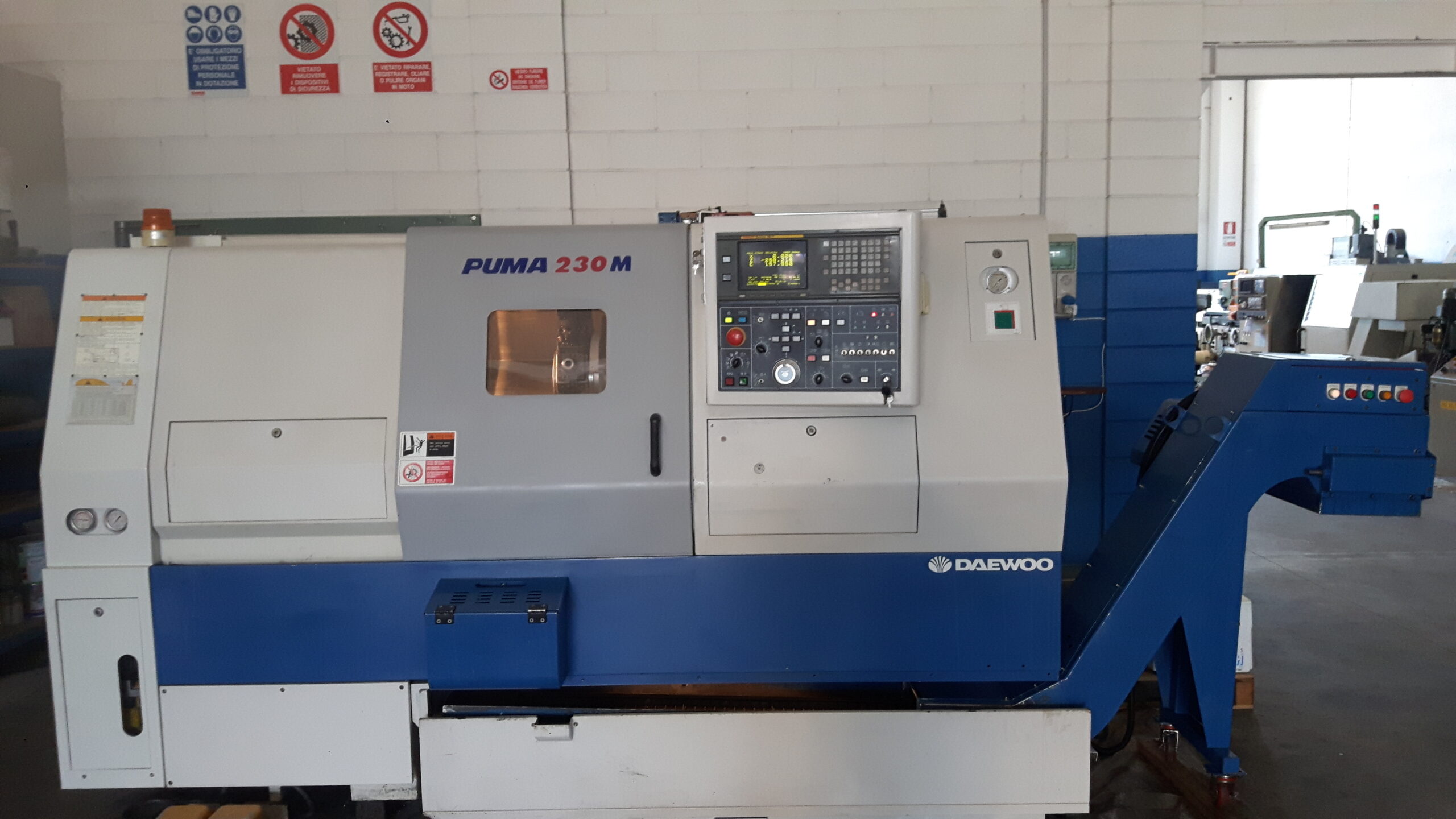

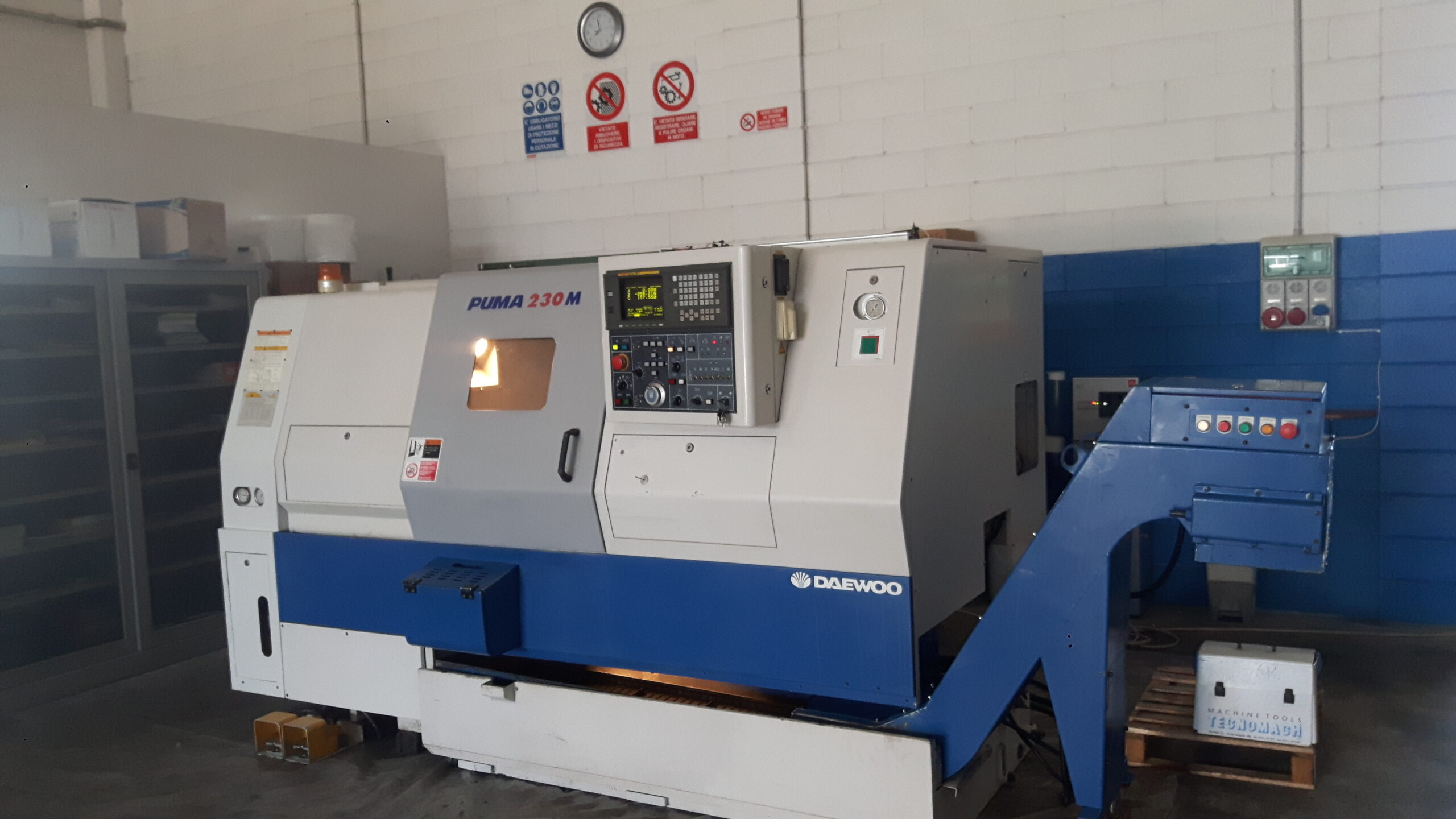

TORNIO DOOSAN DAEWOO PUMA 230 MB CNC FANUC 18-T USATO
CARATTERISTICHE TECNICHE:
| SWING OVER BED | 550 MM |
| SWING OVER SADDLE | 390 MM |
| RECOM MACHINE DIA | 210 MM |
| MAX MACHINING DIA | 290 MM |
| MAX WORK LENGHT | 492 MM |
| DRAW TUBE DIA | 66 MM |
| X AXIS | 205 MM |
| Z AXIS | 580 MM |
| C AXIS | 360 DEG |
| CHUCK DIA | 210 MM |
| SPEED RANGE | 45 4500 RPM |
| SPINDLE NOSE | A2-6 |
| SPINDLE BORE DIA | 76 MM |
| BERNG DIA | 110 MM |
| NR STAITION TURRET | 12 |
| OD TOOL HEIGHT | 25 MM |
| DBORING Bar DIA | 40 MM |
| INDEXING TIME | 0,1 SEC |
RAPID TRAVERSEX 20000 Z 25000
CUTTING FEEDX Z 0,001 500 000
QUILL DIA75 MM
QUILL TRAVEL80 MM
SPINDLE11 15 KW
ROTARY TOOL1,1 3,7 KW
FEED DRIVESX 2,8 Z 2,8 KW
COOLANT PUNP0,24 KW
WEIGHT4140 KG
FLOOR SPACE2997 X 1670 X 1740 H
ANNO 2000,
OTTIME CONDIZIONI .
